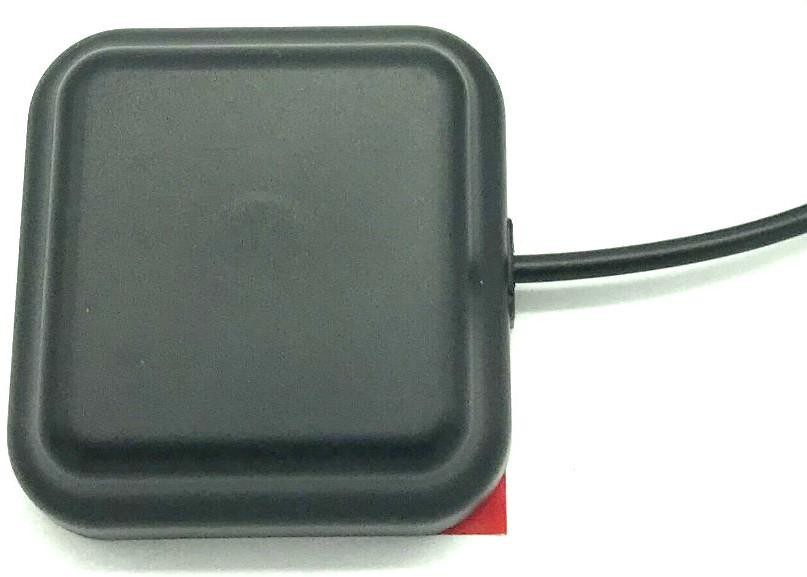

High Precision GPSGNSS Antenna

GL236S

FOB Port: Shanghai or Shenzhen
MOQ: 1000PCS
Supply ability:10000PCS/DAY
Payment: TT,Paypal,Westen Union before shipment

Download Info: here

Item		Specifications
Antenna(2 layers)	Frequency Range	High Band BDS-B1/GPS-L1/GLONASS-G1:1561.098~1602MHz Low Band GPS-L5:1170MHz
	Polarization	RHCP

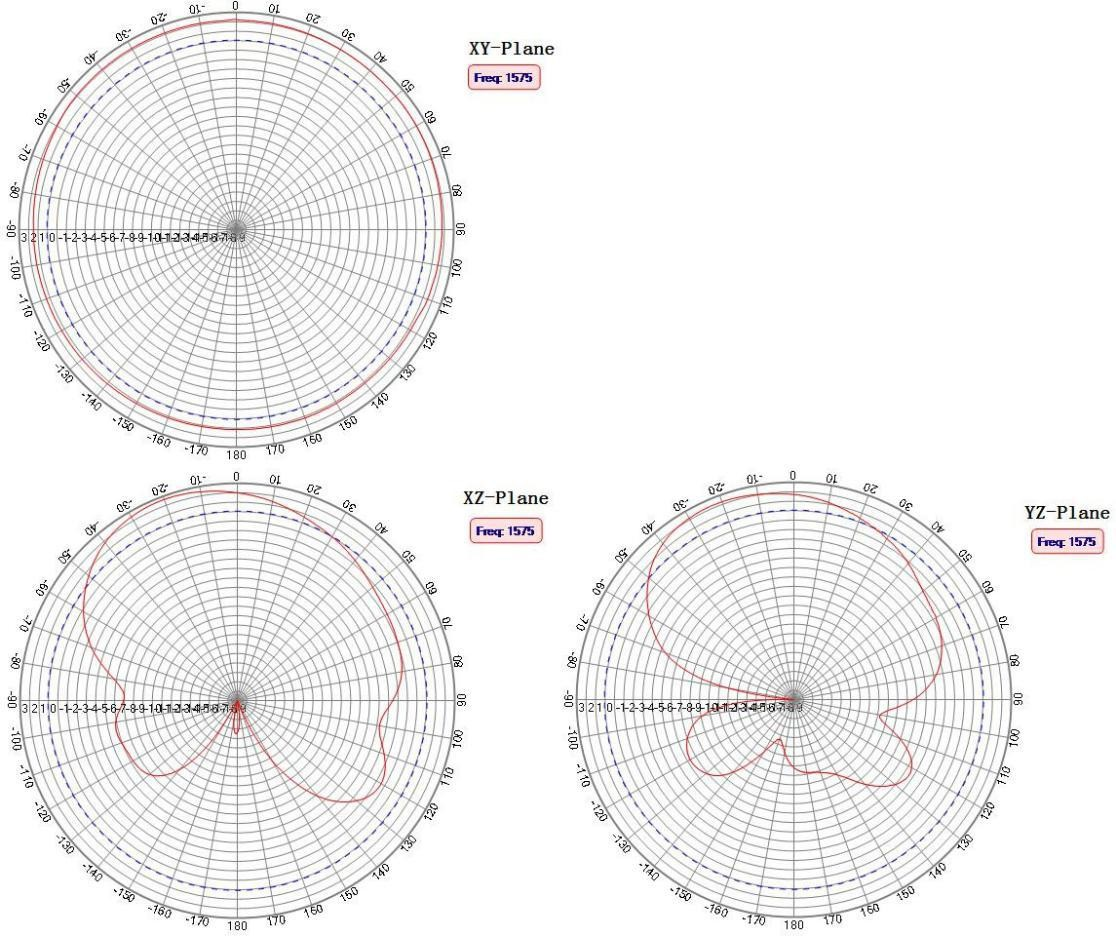

	Gain	3dBic@PCB（Zenith）
	V.S.W.R	＜1.5
	Impedance	50Ω
LNA	Gain	28±2dB
	Noise Figure	≤1.0dB
	Supply Voltage	3~5V DC
	Current Consumption	＜45mA
	V.S.W.R	＜2.0

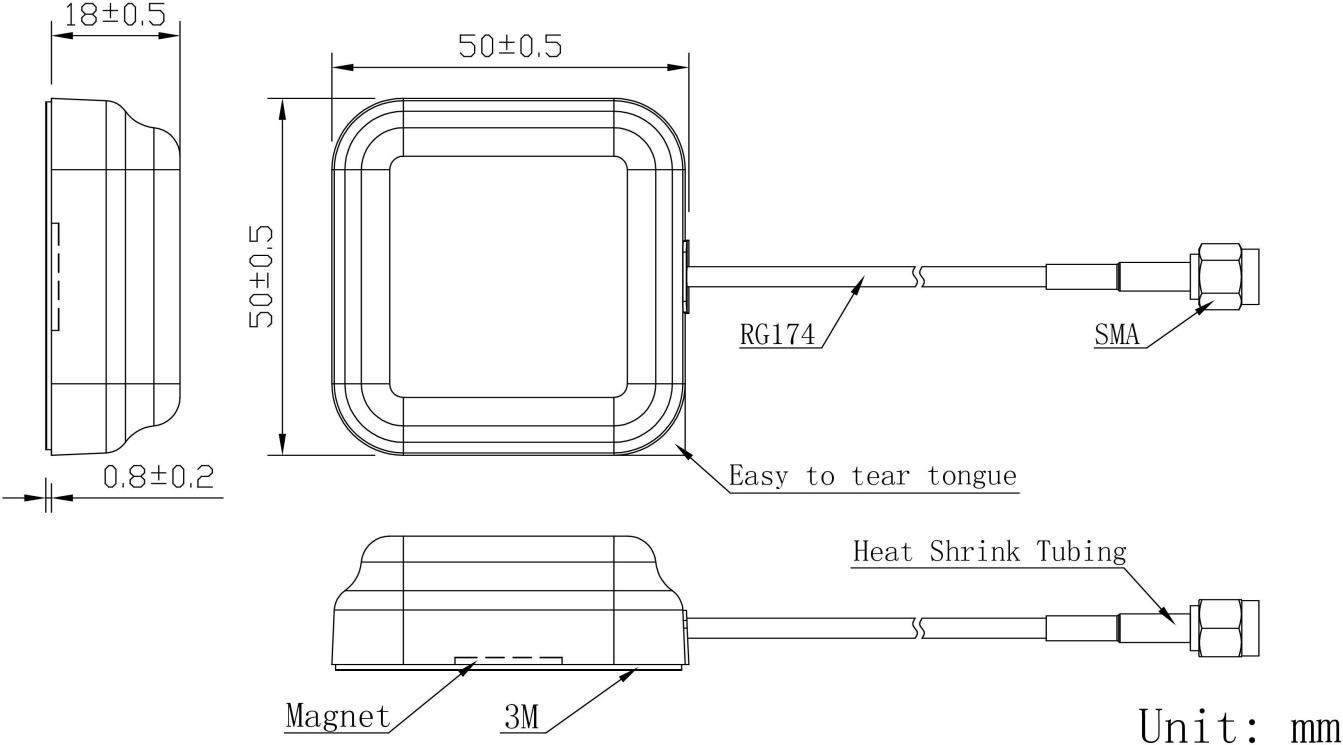

Mechanical	Cable	RG174 3m
	Connector	Fakra C
	Radome Material	ABS
	Mounting Method	Magnet/Adhesive
Environmental	Operating Temperature	-40℃~+85℃
	Relative Humidity	Up to 95%
	Ingress Protection	IP67
	Vibration	10 to 55Hz with 1.5mm amplitude 2hours
	Environmentally Friendly	ROHS Compliant
