FOB Port: Shanghai or Shenzhen
MOQ: 1000PCS
Supply ability:10000PCS/DAY
Payment: TT,Paypal,Westen Union before shipment
Download Info: here
|
Item |
Specifications |
|
|
Antenna |
Frequency Range |
1559.052~ 1602MHz 1164~ 1259MHz |
|
Polarization |
RHCP |
|
|
Axial Ratio |
≤3dB |
|
|
V.S.W.R |
≤2.0 |
|
|
Peak Gain |
≥3dBi |
|
|
Impedance |
50 Ω |
|
|
Horizontal Coverage Angle |
360 ° |
|
|
Vertical Coverage Angle |
5 °~90 ° |
|
|
LNA |
Gain |
B1/L1/G1/E1/E2：40±2dB B2/L2/G2/L5/E5a/E5b：42±2dB |
|
Noise Figure |
≤1.5dB |
|
|
Supply Voltage |
3.3~ 12V DC |
|
|
Current Consumption |
≤60mA |
|
|
V.S.W.R |
≤2.0 |
|
|

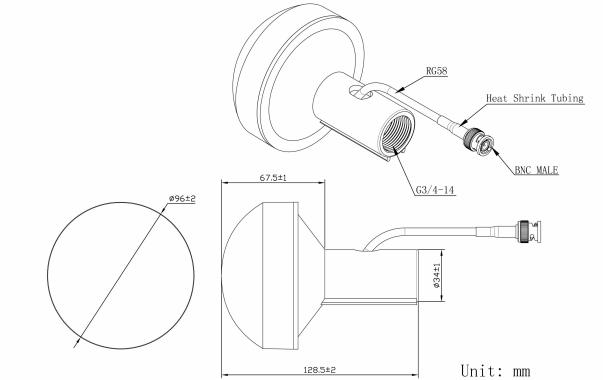

Mechanical |
Cable |
RG58 or others |
|
Connector |
BNC or others |
|
|
Dimension |
Φ96mm |
|
|
Mounting Method |
Screw |
|
|
Radome Material |
ABS |
|
|
Environmental |
Operating Temperature |
-40℃~+70℃ |
|
Storage temperature |
-40℃~+70℃ |
|
|
Relative Humidity |
Up to 95% (Non condensing) |
|
|
Ingress Protection |
IP67 |
|
