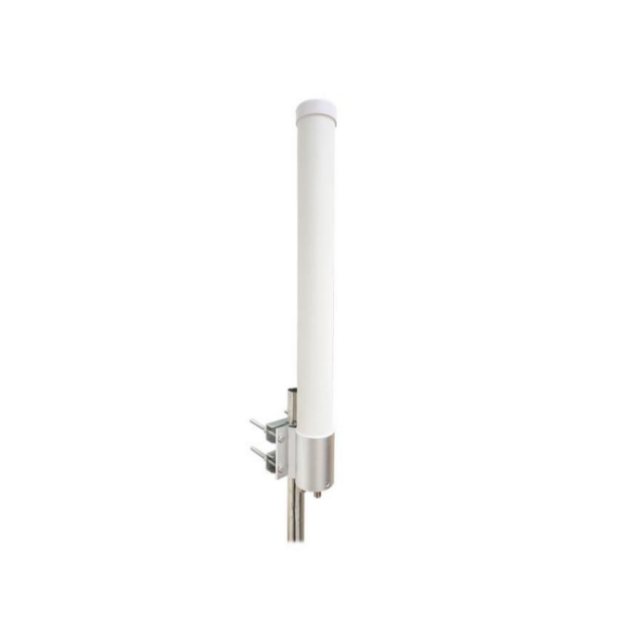

The GL-Q6060F05X4DP is a premium 4x4 MIMO omnidirectional antenna engineered for next-generation LTE and 5G communication networks. Encompassing an ultra-wide frequency range from 600MHz to 6000MHz, it works across global LTE, 5G NR, CBRS, and WiFi channels. Equipped with vertically isolated radiating elements and sophisticated MIMO architecture, the antenna delivers steady signal transmission, boosted network capacity, and dependable wireless coverage for outdoor telecom use.
Frequency Range | 600-960/1710-6000MHzX4 |
Gain | 5dBiX4 |
Horizontal Beam width | 360° |
Vertical Beam width | 21° |
V.S.W.R | 600-960MHz≤4.5;1710-6000MHz≤1.8 |
Radiation | Omni-Direction |
Polarization | Vertical & Horizontal |
Lightning Protection | DC Grounded |
Maximum Input Power | 100W |
Impedance | 50Ώ |
Connector | 4xN Female |
Antenna Radome Material | PVC |
Mounting way | Pole |
Diameter of Installation Pole | Ø30~Ø50mm |
Mechanical | |
Dimensions | Φ75x850mm |
Weight | 2.5KG |
Operating Temperature | -40℃ to+80℃ |
Rated wind velocity(m/s) | 60m/s |
RoHS Compliant | YES |
Product introduction
1. Extremely Wide Frequency Range
Covers 600-960MHz and 1710-6000MHz bands, working with LTE, 5G NR, CBRS, and WiFi systems, minimizing the need for separate antennas.
2. Advanced 4x4 MIMO Capability
Built with four independent radiating components to increase data throughput, signal consistency, and network efficiency in modern wireless setups.
3. 360° Omnidirectional Radiation
Delivers full horizontal signal coverage with a 360° beam pattern, perfect for outdoor installations that require broad and reliable wireless connectivity.
4. Robust Exterior Construction
Manufactured with a durable PVC radome shell, DC-grounded lightning protection, and resistance to severe weather, with an operating temperature range of -40℃ to +80℃.

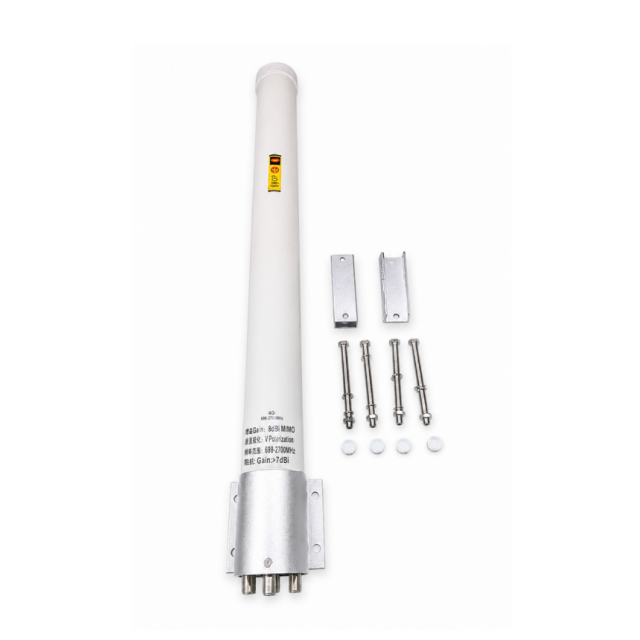

5. Simple Pole-Mount Installation
Designed for straightforward outdoor mounting on poles of Ø30-Ø50mm diameter, ideal for telecom sites, industrial facilities, and commercial buildings.
Application Scenarios
Signal coverage for 5G & LTE base stations

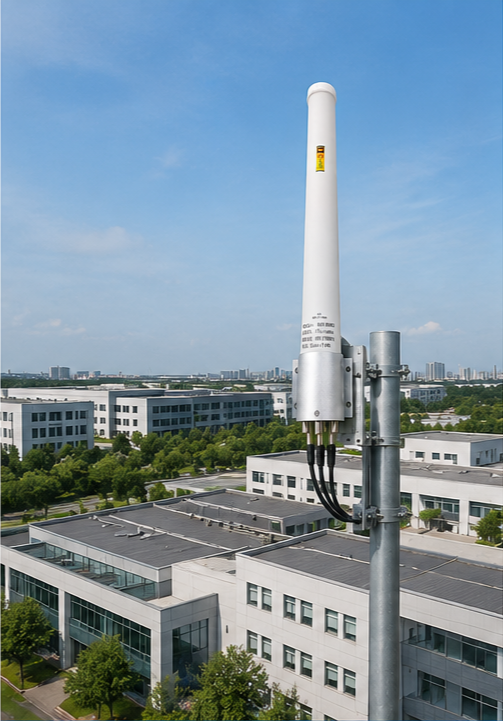

Deployment in CBRS private networks
Industrial wireless communication systems
Smart city & IoT network infrastructure
Outdoor WiFi and campus-wide network coverage
FAQ
Q:Which frequency bands does this antenna support?
A:It supports ultra-wideband frequencies from 600MHz to 6000MHz, covering LTE, 5G NR, CBRS, and WiFi bands.
Q: Can this antenna be used for 5G?
A:Yes, it is purpose-built for 5G and LTE communication systems with 4x4 MIMO capability.
Q:What is the gain level of this antenna?
A:The antenna offers 5dBi gain per port.
Q:Is the antenna suitable for outdoor installation?
A:Yes, it features a weatherproof PVC radome and operates reliably from -40℃ to +80℃.
Q:What type of connector does it come with?
A:It includes 4×N Female Connectors.
Q:Is this antenna usable for CBRS networks?
A:Yes, it supports CBRS frequency bands from 3400-3800MHz.
