Wideband 4T4R MIMO omnidirectional antenna, 617-6000MHz, 5dBi gain, 360° coverage, IP65 rated. Ideal for 2G/3G/4G/5G/WLAN outdoor systems.
Application |
Used in 2G/3G/4G/5G/WLAN system |
Frequency range (MHz) | 617-960 | 1710～2700 | 3300～4200 | 4900～6000 | ||
Polarization | 4*Vertical | |||||
Maximum Gain (dBi)(based on 30cm cable) | 3 | 5 | 5 | 5 | ||
Horizontal beam width (°) | 360 | |||||
Typical Vertical beam width (°) | 85 | 70 | 55 | 28 | ||
Impedance (Ω) | 50 | |||||
VSWR | ≤3.0 | |||||
Maximum power (W) | 50 | |||||
Mechanical specifications | ||||||
Connector | 4 * N Female(or Customized) | |||||
Customized Cable Length (cm) | 50(or Customized) | |||||
Connector position | Bottom | |||||

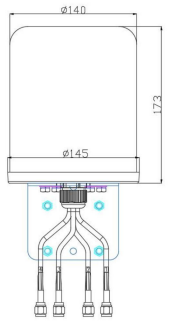

Antenna size (mm) | Φ145* 173 | |||||
Packing size (mm) | 323* 165* 165 | |||||
Weight (kg) | ≤1 . 1 (Include bracket) | |||||
Radome material | ABS | |||||
Radome color | White | |||||
Operating humidity (%) | 5～95 | |||||
Operating temperature (℃ ) | -40～60 | |||||
Application | Outdoor | |||||
Rated wind velocity (m/s) | 40 | |||||
Suitable pole diameter (mm) | Φ30-Φ50 | |||||
Ingress Protection | IP65 （After blocking the water outlet hole） | |||||
Antenna pattern test
617～960MHz Typical pattern
1710～2700MHzTypical pattern
3300～6000MHzTypical pattern
Product Introduction
1.Ultra-Wideband Frequency Coverage
Supports 617–960MHz, 1710–2700MHz, 3300–4200MHz, and 4900–6000MHz, covering 2G/3G/4G/5G and WLAN all in one antenna – future-proof for multi-network deployment.
2.True 4T4R 4x4 MIMO Performance
Four independent vertical polarization ports deliver 4x4 MIMO capability, significantly increasing data throughput and signal reliability in dense urban or indoor-outdoor edge areas.
3.Full 360° Horizontal Beamwidth
Omnidirectional radiation pattern ensures seamless coverage around the antenna, eliminating dead zones. Typical vertical beamwidth of 85°/70°/55°/28° optimizes for different frequency bands.
4.Rugged Outdoor Design
IP65 ingress protection (when bottom outlet is sealed) against dust and water jets. ABS radome, white finish, operating temperature -40°C to +60°C, and withstands 40m/s wind – built for harsh environments.
5.Flexible Installation & Customization
Compact size (Φ145×173mm) with low weight (≤1.1kg including bracket). Fits pole diameters Φ30–50mm. Comes with 50cm cable and 4x N Female Connectors; custom cable length and connector options available.
Application Scenarios
●Rural 5G/LTE Broadband Coverage – Mount on towers or poles to provide 360° 4x4 MIMO connectivity for remote homes and farms.
●Outdoor Public Wi-Fi Hotspots – Deploy in parks, stadiums, or plazas for high-capacity WLAN backhaul with omnidirectional reach.
●Industrial IoT & Smart Grid – Reliable multi-band communication for sensors, monitors, and automation devices in factories or power substations.
●Temporary Emergency Communication – Fast-deploy on portable masts for disaster relief or event coverage requiring 2G/3G/4G/5G interoperability.
●Small Cell Backhaul Enhancement – Supplement macro cells in dense urban canyons or underground passages where 360° coverage is critical.

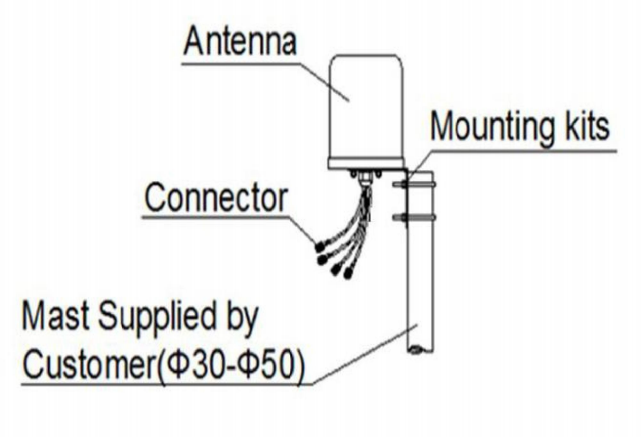

Installation Sketch
FAQ
Q: Which frequency bands does this antenna support?
A: Supports 617–960MHz, 1710–2700MHz, 3300–4200MHz, and 4900–6000MHz.
Q: What is the antenna gain?
A: Gains are 3, 5, 5, and 5 dBi (based on 30cm cable).
Q: What type of connector is required for installation?
A: Equipped with 4 N-type female connectors; custom designs are available upon request.
Q: Is the antenna suitable for indoor or outdoor use?
A: Designed for outdoor use, IP65 protection, suitable for harsh environments.
Q: What are the antenna's weight and dimensions?
A: Antenna Φ145×173 mm, weight ≤1.1 kg (including bracket).
Q: Which polarization method is supported?
A: 4* vertical polarization.
