FOB Port: Shanghai or Shenzhen
MOQ: 100PCS
Supply ability:5000PCS/DAY
Payment: TT,Paypal,Westen Union before shipment
Download Info: here
|

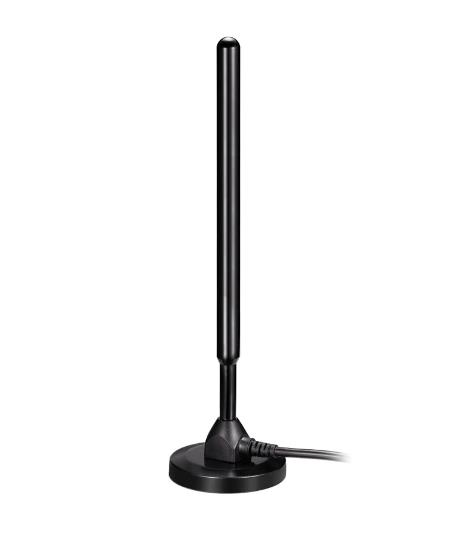

Product: 4G Magnet Antenna SMA R/A male |
|
|
PN: GLG093 |
|
|
Electrical Index |
|
|
Frequency-MHz |
700-2700 |
|
VSWR |
＜1.5 |
|
Gain-dBi |
3-5 |
|
Normal Impedance-Ω |
50 |
|
Polarization |
Liner |
|
Mechanical Index |
|
|
Cable Length |
RG174,2.5m |
|
Connector |
SMA male |
|
Antenna Dimension-mm |
Ø62*213 |
|
Installation Way |
Magnet |
|
Material |
Copper |
|
Vibration |
10 to 55Hz with 1.5mm amplitude 2hours |
|
Environmentally Friendly |
ROHS Compliant |
|
Temperature-℃ |
-40～＋85 |
|
Humidity-﹪ |
5～95 |
FAQ
Q: Can I get one sample?
A: Yes, sample is available.
Q: Have GNSS antenna 100% assembles well in stock?
A: No, all GNSS antenna will be newly assembled according to your orders including the samples.
Q: What's the delivery time?
A: 3-5 working days for the sample, 10-15 working days for quantity below 5K,.
Q: Could i use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.
Q: What's the payment term?
A:T/T, Paypal, western union etc.
Q:May I visit your company?
A: Sure, welcome any time.
Q: How long of the warranty?
A: one year for antennas and half a year for assembly cables and Connectors
