FOB Port: Shanghai or Shenzhen
MOQ: 100PCS
Supply ability: 3000PCS/DAY
Payment: TT,Paypal,Western Union before shipment
Download Info: here
|
Electrical Specifications |
||
|
Frequency Range |
698-960MHz |
1710-2700MHz |
|
VSWR |
≤2.0 |
≤2.0 |
|
Gain |
6dBi |
7dBi |
|
Horizontal beam width |
360° |
|
|
Vertical beam width |
30° |
|
|
Polarization |
Vertical |
|
|
Input Impedance |
50Ω |
|
|
Maximum input power |
100W |
|
|
Lightning protection |
DC Ground |
|
|
Mechanical Specifications |
||
|

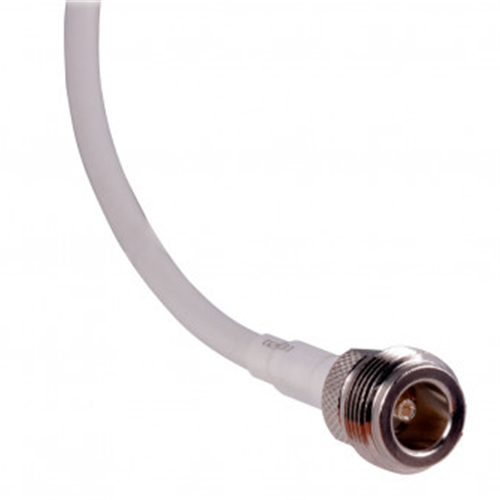

Input connector type |
N female |
|
|
Connector place |
Bottom |
|
|
Dimensions |
Ф63×600mm |
|
|
Antenna weight |
2kg |
|
|
Radome material |
Fiberglass |
|
|
Radome color |
White |
|
|
Operating temperature |
-40°c～60°c |
|
|
Rated Wind Velocity |
60 m/s |
|
|
Mounting hardware |
￠38～￠52 |
|
FAQ
Q: Can I get one sample?
A: Yes, sample is available.
Q: Have GNSS antenna 100% assembles well in stock?
A: No, all GNSS antenna will be newly assembled according to your orders including the samples.
Q: What's the delivery time?
A: 3-5 working days for the sample, 10-15 working days for quantity below 5K,.
Q: Could i use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.
Q: What's the payment term?
A:T/T, Paypal, western union etc.
Q:May I visit your company?
A: Sure, welcome any time.
Q: How long of the warranty?
A: one year for antennas and half a year for assembly cables and Connectors
