FOB Port: Shanghai or Shenzhen
MOQ: 100PCS
Supply ability:5000PCS/DAY
Payment: TT,Paypal,Westen Union before shipment
Packing information: 100PCS/CTN, 14.1KGS/CTN, CTN Size: 53*29*23CM
Download Info: here
|

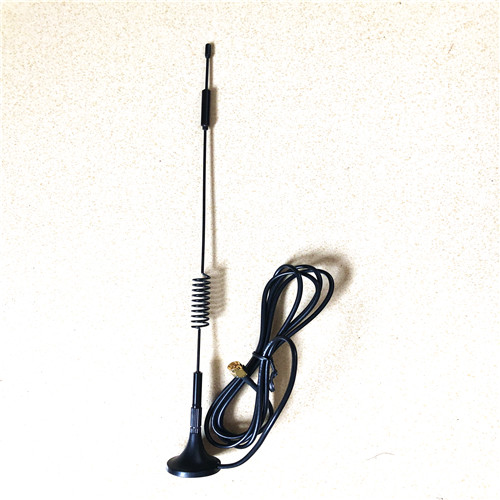

30*320mm 4G Magnet Antenna |
|
| GL-DYG831 | |
|
Electrical Index |
|
|
Frequency-MHz |
698-960/1710-2700 |
|
VSWR |
＜1.5 |
|
Nominal Impedance-Ω |
50 |
|
Polarization |
Vertical |
|
Gain-dBi |
5 |
|
Mechanical Index |
|
|
Cable Length |
RG174,2m |
|
Connector |
SMA male |
|
Antenna Dimension-mm |
30*320 |
|
Installation Way |
Magnet |
|
Environmentally Friendly |
ROHS Compliant |
|
Temperature-℃ |
-40～＋85 |
|
Humidity-﹪ |
5～95 |
FAQ
Q: Can I get one sample?
A: Yes, sample is available.
Q: Have GNSS antenna 100% assembles well in stock?
A: No, all GNSS antenna will be newly assembled according to your orders including the samples.
Q: What's the delivery time?
A: 3-5 working days for the sample, 10-15 working days for quantity below 5K,.
Q: Could i use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.
Q: What's the payment term?
A:T/T, Paypal, western union etc.
Q:May I visit your company?
A: Sure, welcome any time.
Q: How long of the warranty?
A: 1 year for antennas and half a year for assembly cables and Connectors
