FOB Port: Shanghai or Shenzhen
MOQ: 100PCS
Supply ability:5000PCS/DAY
Payment: TT,Paypal,Westen Union before shipment
Download Info: here
|
Model |
GLF-400A |
|
Frequency Range- MHz |
433.175-434.665 |
|
Bandwidth -MHz |
14 |
|
Gain -dBi |
11 |
|
Vertical Beamwidth ° |
10° |
|
Horizontal Beamwidth ° |
360° |
|
VSWR |
≤1.5 |
|
Polarization |
Vertical |
|
Max Power- W |
100 |
|
Nominal Impedance-Ω |
50 |
|
Connector |
N female |
|

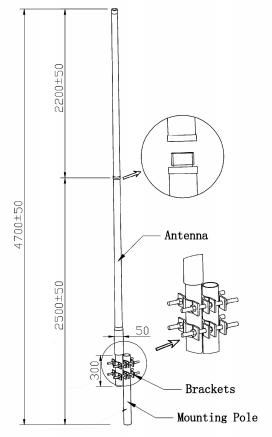

Length-m |
4.7 |
|
Weight- kg |
5 |
|
Working Temperature-℃ |
-30°~60° |
|
Rated Wind Velocity- m/s |
60 |
|
Mounting Mast Diameter -mm |
Φ40~50 |
FAQ
Q: Can I get one sample?
A: Yes, sample is available.
Q: Have GNSS antenna 100% assembles well in stock?
A: No, all GNSS antenna will be newly assembled according to your orders including the samples.
Q: What's the delivery time?
A: 3-5 working days for the sample, 10-15 working days for quantity below 5K,.
Q: Could i use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.
Q: What's the payment term?
A:T/T, Paypal, western union etc.
Q:May I visit your company?
A: Sure, welcome any time.
Q: How long of the warranty?
A: one year for antennas and half a year for assembly cables and Connectors
