GL-DY465 |
|
|
Electrical Index |
|
|
Frequency-MHz |
2400-2500 |
|
Gain-dBi |
3.0 |
|
VSWR |
＜2.0 |
|
Normal Impedance-Ω |
50 |
|
Polarization |
Linear |
|
Mechanical Index |
|
|
Connector |
ＲＰ－ＳＭＡ male |
|

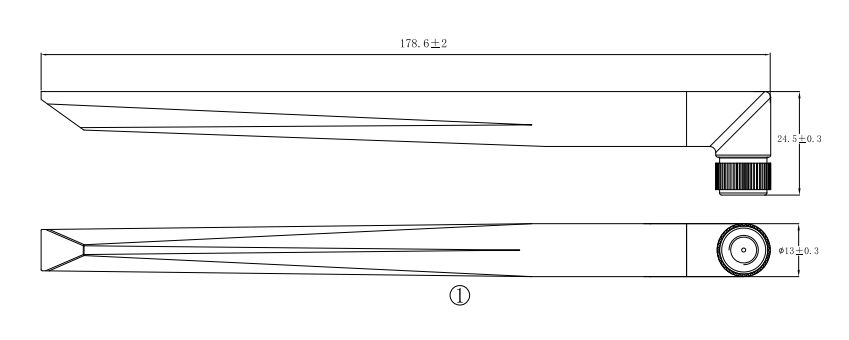

Antenna Dimension-mm |
Ø13*１７８．６ |
|
Material |
ABS |
|
Environmentally Friendly |
ROHS Compliant |
|
Temperature-℃ |
-40～＋85 |
|
Humidity-﹪ |
5～95 |
FAQ
Q: Can I get one sample?
A: Yes, sample is available.
Q: Have GNSS antenna 100% assembles well in stock?
A: No, all GNSS antenna will be newly assembled according to your orders including the samples.
Q: What's the delivery time?
A: 3-5 working days for the sample, 10-15 working days for quantity below 5K,.
Q: Could i use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.
Q: What's the payment term?
A:T/T, Paypal, western union etc.
Q:May I visit your company?
A: Sure, welcome any time.
Q: How long of the warranty?
A: one year for antennas and half a year for assembly cables and Connectors
