FOB Port: Shanghai or shenzhen
MOQ: 500PCS
Supply Ability:5000 Pcs/Day
Payment: TT,Paypal,Westen Union

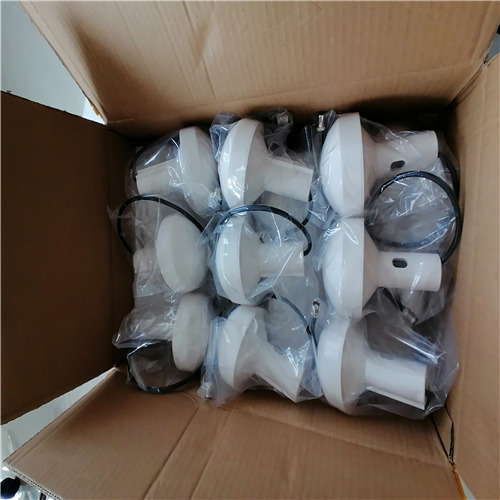

Packing information: 30PCS/CTN, 16KG/CTN,CTN Size: 70*32*15.5CM
Download Info: here
|

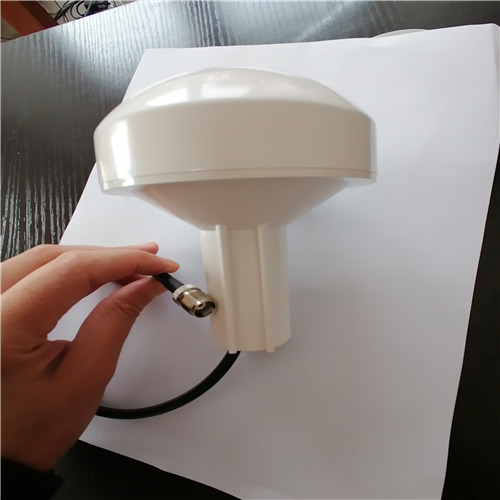

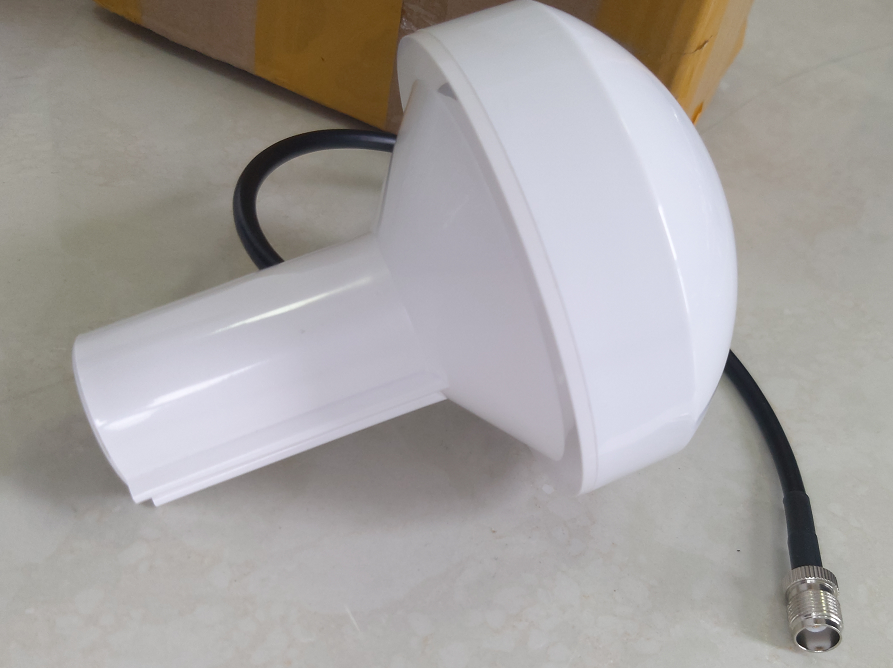

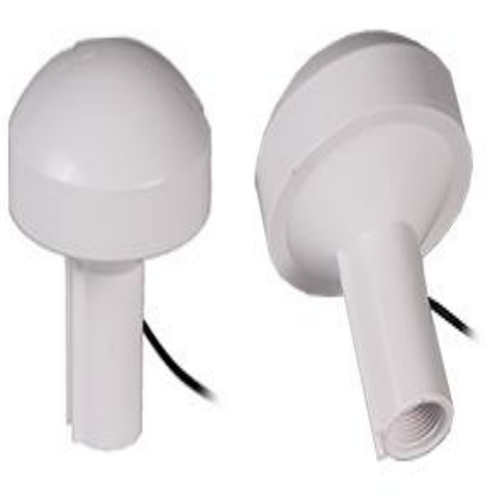

GNSS Marine Antenna |
|
| GL-DY005 | |
|
Electrical Index |
|
|
Frequency-MHz |
1575.42±1/1601-1610 |
|
VSWR |
＜1.5 |
|
Nominal Impedance-Ω |
50 |
|
Polarization |
RHCP, |
|
Axial Ratio |
3dB(max) |
|
LNA Gain |
42±2dB |
|
Noise Figure |
＜1.5 |
|
Supply Voltage |
3-5V DC |
|
Current Consumption |
18-35mA |
|
Mechanical Index |
|
|
Cable Length |
RG58,30cm |
|
Connector |
N female |
|

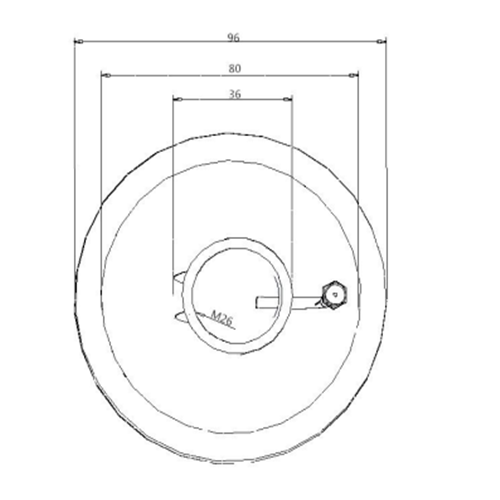

Antenna Dimension-mm |
96*127 |
|
Installation Way |
Screw |
|
Ingress Protection |
IP65~IP67(exclude cable outlet) |
|
Vibration |
10 to 55Hz with 1.5mm amplitude 2hours |
|
Environmentally Friendly |
ROHS Compliant |
|
Temperature-℃ |
-40～＋85 |
|
Humidity-﹪ |
5～95 |
FAQ
Q: Can I get one sample?
A: Yes, sample is available.
Q: Have GNSS antenna 100% assembles well in stock?
A: No, all GNSS antenna will be newly assembled according to your orders including the samples.
Q: What's the delivery time?
A: 3-5 working days for the sample, 10-15 working days for quantity below 5K,.
Q: Could i use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.
Q: What's the payment term?
A:T/T, Paypal, western union etc.
Q:May I visit your company?
A: Sure, welcome any time.
Q: How long of the warranty?
A: one year for antennas and half a year for assembly cables and Connectors
