FOB Port: Shanghai or Shenzhen
MOQ: 100PCS
Supply ability:500PCS/DAY
Payment: TT,Paypal,Western Union before shipment
Download Info: here
|

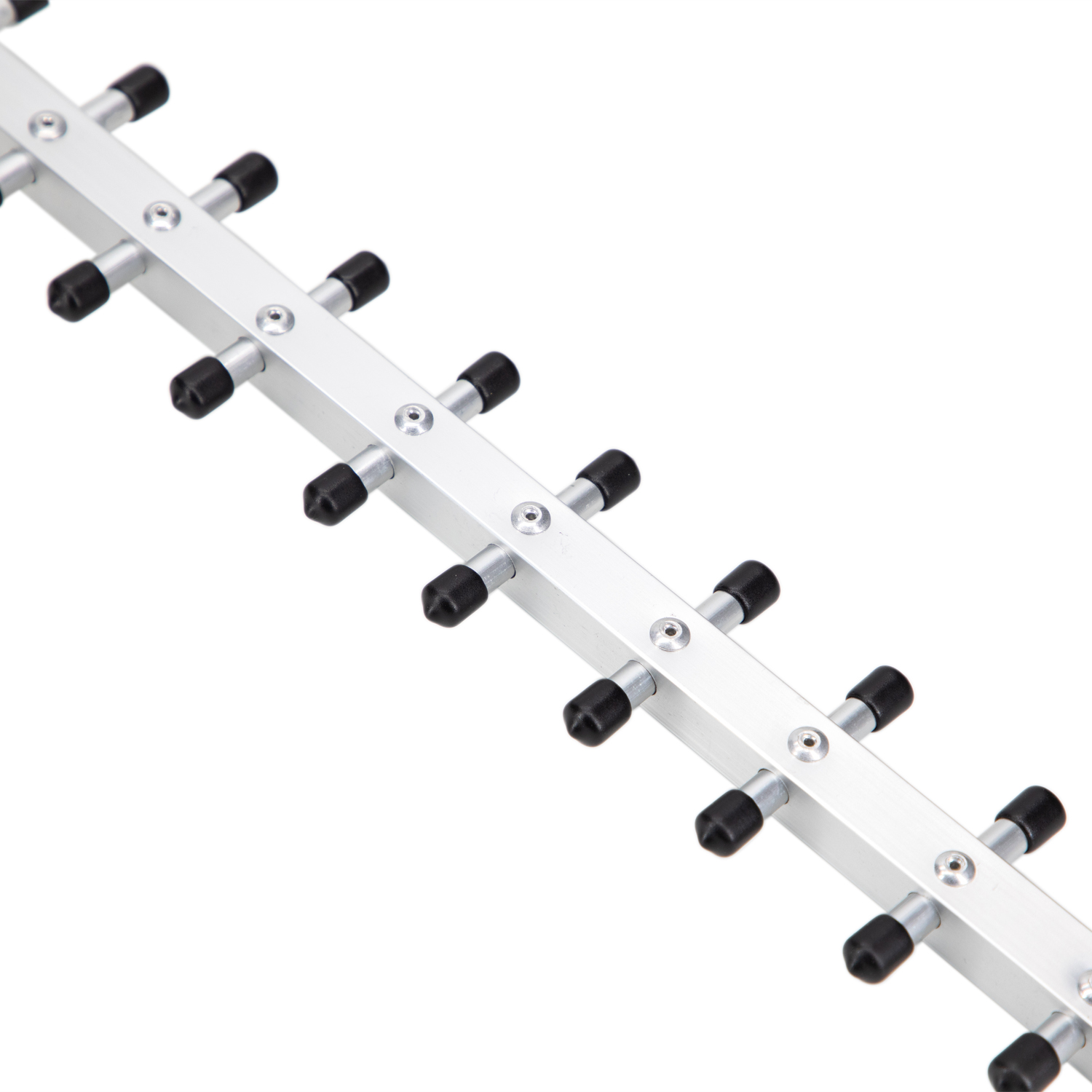

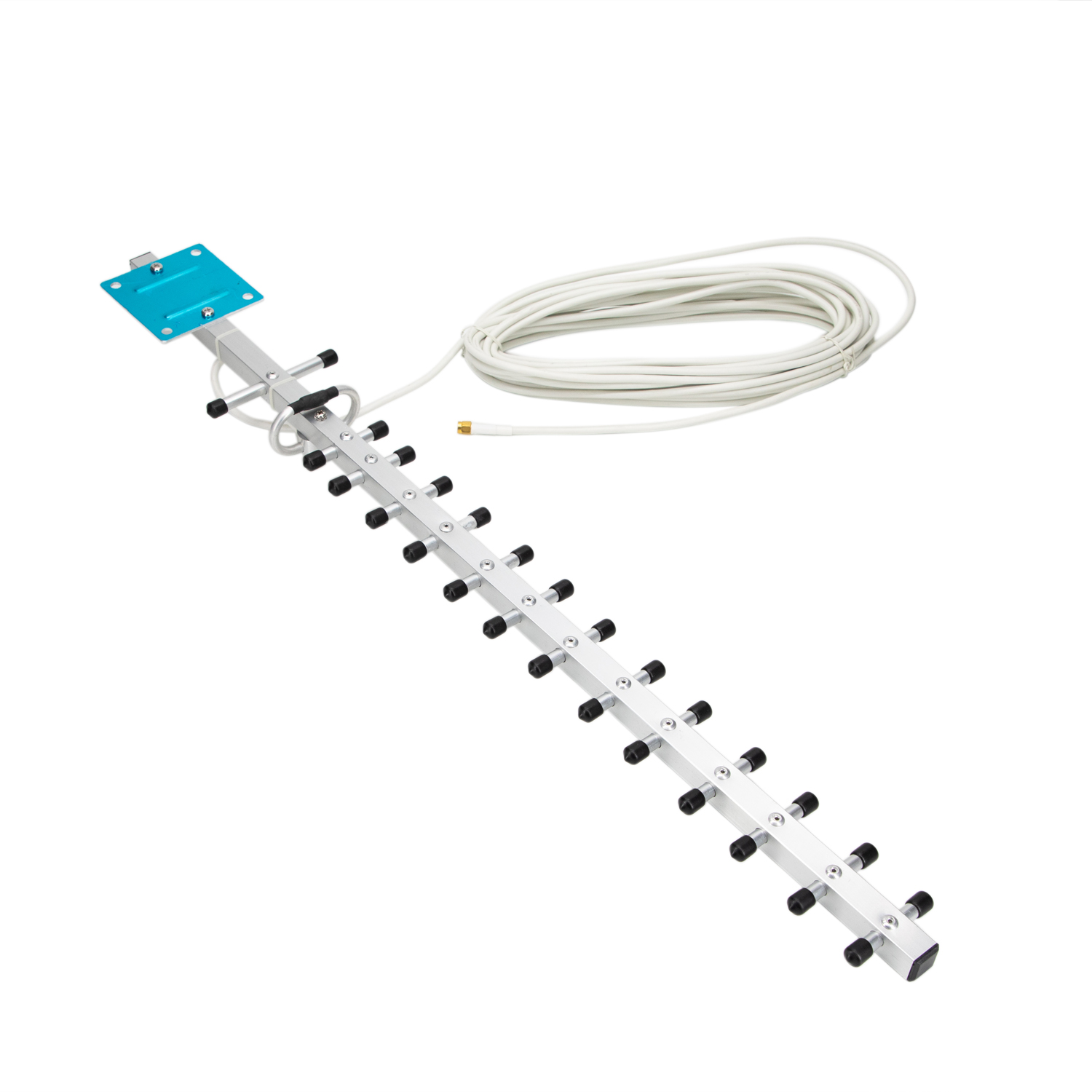

2100MHz 15dBi Yagi antenna |
|
| GL-DYY2100 | |
|
Electrical Index |
|
|
Frequency-MHz |
1710-2170 |
| VSWR |
＜1.5 |
|
F/B Ratio-dB |
≥17 |
| Nominal Impedance-Ω |
50 |
| Max.Power-W | 50 |
| Polarization |
Vertical |
|
Horizontal BeamWidth |
50° |
|
Vertical Beamwidth |
42° |
| Gain-dBi |
15 |
| Lighting Proteciton | DC Ground |
|
Mechanical Index |
|
|
Connector |
SMA male |
|
Antenna Dimension-mm |
760 |
| Cable-m |
RG58,0.3 |
| Mounting Hardware-mm |
Ø40-Ø50
|
|
Antenna weight-g |
500 |
| Reflector material | Aluminum |
|
Environmentally Friendly |
ROHS Compliant |
|
Temperature-℃ |
-40～＋85 |
|
Humidity-﹪ |
5～95 |
FAQ
Q: Can I get one sample?
A: Yes, sample is available.
Q: Have GNSS antenna 100% assembles well in stock?
A: No, all GNSS antenna will be newly assembled according to your orders including the samples.
Q: What's the delivery time?
A: 3-5 working days for the sample, 10-15 working days for quantity below 5K,.
Q: Could i use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.
Q: What's the payment term?
A:T/T, Paypal, western union etc.
Q:May I visit your company?
A: Sure, welcome any time.
Q: How long of the warranty?
A: one year for antennas and half a year for assembly cables and Connectors
