FOB Port: Shanghai or shenzhen
MOQ: 500PCS
Supply Ability:5000 Pcs/Day
Payment: TT,Paypal,Western Union
Download Info: here

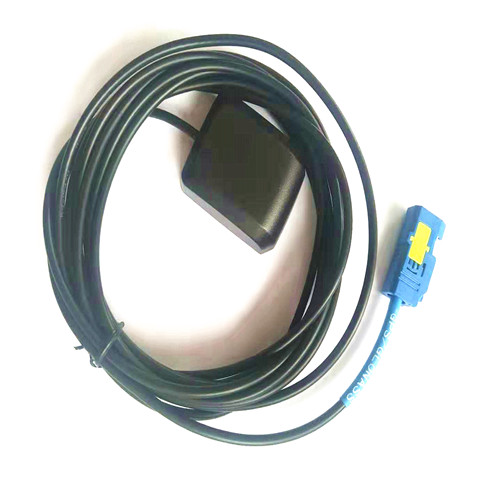

| GL-DY226 | |
|
Electrical Index |
|
|
Frequency-MHz |
1575.42-1602 |
|
V.S.W.R |
＜1.5 |
|
Nominal Impedance-Ω |
50 |
|
Polarization |
RHCP, |
|
Axial Ratio-dB |
3(max) |
|
LNA Gain-dB |
28±2 |
|
Noise Figure |
＜1.5 |
|
Supply Voltage-V |
3-5 DC |
|
Current Consumption-mA |
5-15 |
|
Mechanical Index |
|
|
Cable Length-m |
RG174,2 |
|
Connector |
Fakra C blue |
|
Antenna Dimension-mm |
40*30*15.1 |
|
Installation Way |
Magnet or Adhesive |
|
Ingress Protection |
IP65~IP67(exclude cable outlet) |
|
Vibration |
10 to 55Hz with 1.5mm amplitude 2hours |
|
Environmentally Friendly |
ROHS Compliant |
|
Temperature-℃ |
-40～＋85 |
|
Humidity-﹪ |
5～95 |
FAQ
Q: Can I get one sample?
A: Yes, sample is available.
Q: Have GNSS Antenna 100% assembles well in stock?
A: No, all GNSS antenna will be newly assembled according to your orders including the samples.
Q: What's the delivery time?
A: 3-5 working days for the sample, 10-15 working days for quantity below 5K,.
Q: Could i use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.
Q: What's the payment term?
A:T/T, Paypal, western union etc.
Q:May I visit your company?
A: Sure, welcome any time.
Q: How long of the warranty?
A: one year for antennas and half a year for assembly cables and Connectors
