Item |
Specifications |
||
GNSS antenna (2 pins) |
Dielectric Antenna |
Frequency Range-MHz |
GPS:1561.098~ 1575.42(L1-Band) QZSS: 1563-1587(L1) Galileo: 1559-1591(E1) GLONASS: 1602.0-1614.94 |
Polarization |
RHCP |
||
Gain |
5dBic(Zenith) |
||
V.S.W.R |
<1.5 |
||
Impedance |
50Ω |
||
Dimension |
33.5*33.5*6mm |
||
Axial Ratio |
3dB |
||
LNA |
Gain |
28±2dB |
|
Noise Figure |
<1.5dB |
||
V.S.W.R |
<2.0 |
||
Supply Voltage |
3~5.5V DC |
||
Current Consumption |
<25mA |
||
LTE Antenna |
Frequency Range |
698~960MHz/1710~2690MHz |
|
V.S.W.R |
≤3.0 |
||
Polarization |
Linear |
||
Gain |
2dBi |
||
Impedance |
50Ω |
||
DC resistance |
10KΩ |
||
Mechanical |
Cable |
RG174 or others |
|
Connector |
SMA or others |
||
Radome Material |
ABS |
||
Mounting Method |
Magnet/Adhesive |
||
Environmental |
Operating Temperature |
-40℃~+85℃ |
|
Relative Humidity |
Up to 95% |
||
Ingress Protection |
IP66 |
||
Vibration |
10 to 55Hz with 1.5mm amplitude 2hours |
||
Environmentally Friendly |
ROHS Compliant |

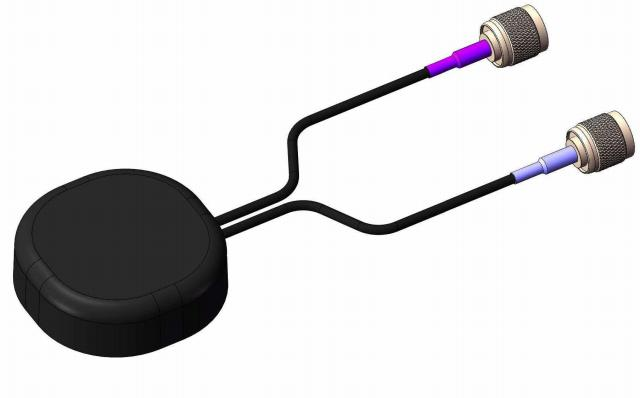

Product Application Scenarios for GNSS and LTE Combination Antenna GLB318L:
1. Vehicle Tracking and Navigation System: This antenna is specifically designed for vehicle tracking and navigation systems. It can be installed on cars, trucks, or any other vehicle to provide accurate positioning and navigation information. The GNSS capability ensures precise location tracking, while the LTE functionality enables real-time communication and data transfer. With this antenna, fleet management companies can efficiently monitor their vehicles, optimize routes, and enhance overall operational efficiency.
2. Smart City Infrastructure: The GLB318L antenna finds extensive application in smart city infrastructure projects. It can be deployed on streetlights, traffic signal poles, or other urban fixtures to enable location-based services and connectivity. The GNSS feature enables accurate positioning for various applications such as intelligent transportation systems, smart parking, and environmental monitoring. Additionally, the LTE functionality allows seamless communication between different components of the smart city ecosystem, facilitating efficient data exchange and management.
3. Industrial Automation and IoT: In industrial automation and Internet of Things (IoT) applications, the GLB318L antenna plays a crucial role. It can be integrated into machinery, equipment, or industrial devices to enable real-time monitoring, control, and data transmission. The GNSS capability ensures precise location tracking, which is essential for asset management and tracking within industrial environments. The LTE functionality enables reliable and secure communication between different IoT devices, facilitating seamless integration and automation in industrial processes.
4. Agriculture and Precision Farming: The GLB318L antenna is highly suitable for agriculture and precision farming applications. It can be installed on agricultural machinery, drones, or weather stations to provide accurate positioning and connectivity. The GNSS feature allows farmers to precisely track their equipment, monitor crop health, and optimize farming operations. The LTE capability enables seamless data transfer between farming equipment and cloud-based platforms, facilitating real-time analysis, decision-making, and remote monitoring.
5. Outdoor Sports and Recreation: For outdoor sports and recreational activities, the GLB318L antenna offers reliable positioning and communication capabilities. It can be integrated into sports equipment, wearable devices, or outdoor navigation systems. The GNSS functionality ensures accurate tracking and navigation for activities such as hiking, biking, or skiing. The LTE feature enables communication and sharing of location-based information, enhancing safety and facilitating group coordination during outdoor adventures.
6. Emergency Response and Public Safety: In emergency response and public safety scenarios, the GLB318L antenna proves to be invaluable. It can be deployed in emergency vehicles, command centers, or surveillance systems to enable efficient communication and location tracking. The GNSS capability ensures accurate positioning of emergency personnel and vehicles, facilitating quick response and coordination during critical situations. The LTE functionality enables real-time data exchange, video streaming, and remote monitoring, enhancing situational awareness and improving overall public safety.
In summary, the GNSS and LTE Combination Antenna GLB318L finds application in various domains, including vehicle tracking, smart city infrastructure, industrial automation, agriculture, outdoor sports, and emergency response. Its precise positioning, reliable communication, and seamless connectivity capabilities make it a versatile and essential component in numerous professional applications.
